Connect Salesforce to Rig

Before you start

• You need Salesforce admin access to create the app.
• Ideally use a dedicated integration user, preferably one with the API Only User permission, with read access to the objects you want Rig to see. The integration runs as that user, so its permissions are exactly what Rig can read.
• By the end you'll have three values to paste into Rig: an Instance URL, a Consumer Key and a Consumer Secret.

Step 1: Create an app with the Client Credentials flow

External Client App (recommended)

1. In Salesforce, go to Setup, type External in Quick Find, and open External Client App Manager. Click New External Client App.
2. Enter a name (e.g. "Rig"), an API name, and a contact email.
3. Under API (Enable OAuth Settings), select Enable OAuth.
4. Callback URL: the Client Credentials flow never uses a redirect, but the field is required. Enter any valid HTTPS URL, e.g. https://login.salesforce.com/services/oauth2/callback.
5. For OAuth Scopes, add Manage user data via APIs (api).
6. Under Flow Enablement, enable the Client Credentials Flow and accept the security warning.
7. Click Create.
8. Back in External Client App Manager, open the app's actions menu and choose Edit Policies. Under Client Credentials Flow, set Run As to your integration user, then Save. The field wants the user's Salesforce username, not their email — they often differ. If you get "Enter a valid execution user", copy the exact value from the Username column in Setup → Users.
9. From the app's actions menu choose Edit Settings, open OAuth Settings, and copy the Consumer Key and Consumer Secret.

Connected App (legacy / existing apps)

1. Setup → App Manager → New Connected App.
2. Enable OAuth settings, add the Manage user data via APIs (api) scope, tick Enable Client Credentials Flow, and save.
3. On the app, click Manage → Edit Policies, and under Client Credentials Flow set the Run As user.
4. Back on the app, open Manage Consumer Details and copy the Consumer Key and Consumer Secret.

Step 2: Grant the integration user object access

The integration runs as the Run As user, so Rig can only read the objects and fields that user is allowed to see. This step is easy to miss and is the most common reason a connection authenticates but returns nothing.

1. In Setup, type Permission Sets in Quick Find and open it. Click New to create one (e.g. "Rig Read Access"). The License dropdown matters and can't be changed after creation:
   • Run As user on a regular Salesforce license → leave it at --None--.
   • Run As user on the free Salesforce Integration license (the usual choice for a dedicated integration user) → pick Salesforce API Integration. Careful: the dropdown also contains Salesforce Integration — a different entry, one word apart. Only the one with API in the middle unlocks CRM objects.
2. If the integration user's profile doesn't already include API access (minimal profiles like Minimum Access - Salesforce don't), open System Permissions in the permission set, click Edit, and tick API Enabled. Without it, every call fails with API_CURRENTLY_DISABLED ("API is disabled for this User") before object permissions are even checked.

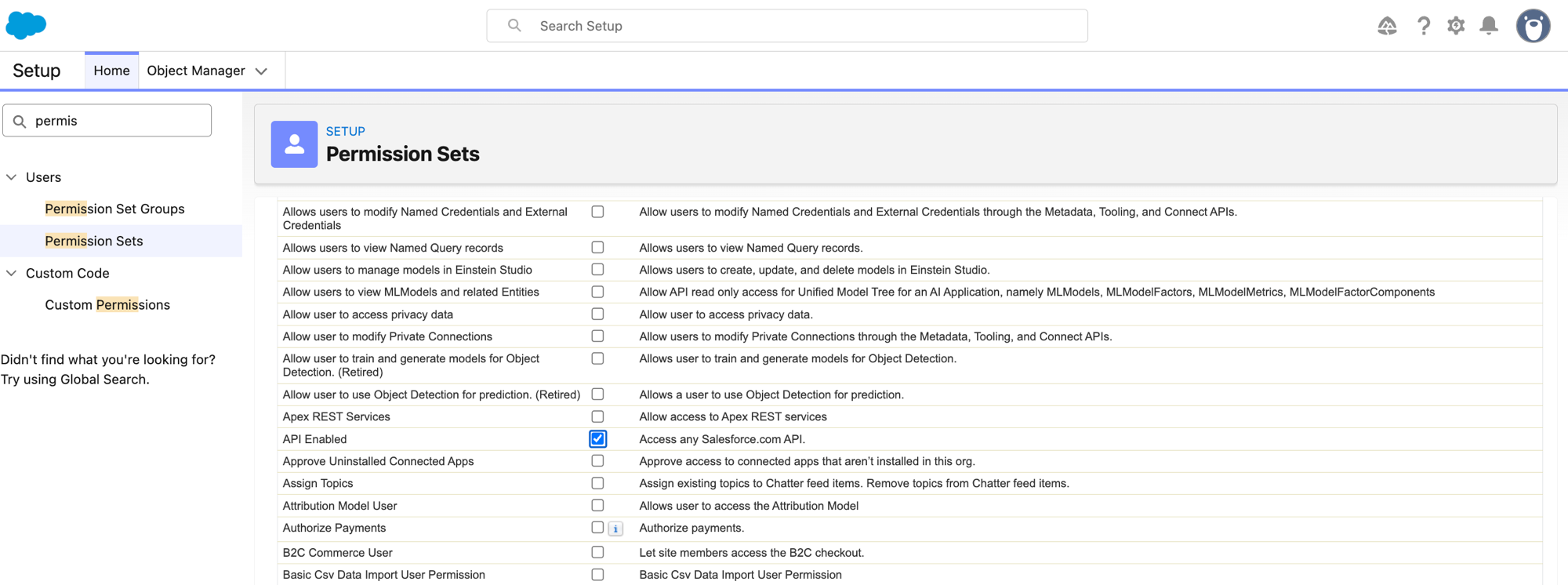

   System Permissions → API Enabled: required for the Run As user to call the REST API at all.

3. Go to Object Settings (or type the object name into the Find Settings... box at the top of the permission set), and for each object you want Rig to see — Rig syncs every business object the Run As user can read, with all of its fields, so this grant is what decides the scope — click Edit and enable Read (and View All if you want every record, not just the user's own). Access is granted per object: any object you skip keeps failing with INVALID_TYPE even while the others work. Two traps here: if Accounts, Contacts etc. don't appear in the list at all, the permission set was created with the wrong license — Salesforce hides objects the license can't grant; recreate it with the right one (previous step). And grant the plain standard objects, not similarly-named custom ones — an API name ending in __c (e.g. "Account Products" / Account_Product__c) is a custom object. Rig syncs custom objects too, but granting one does not grant the standard Account.

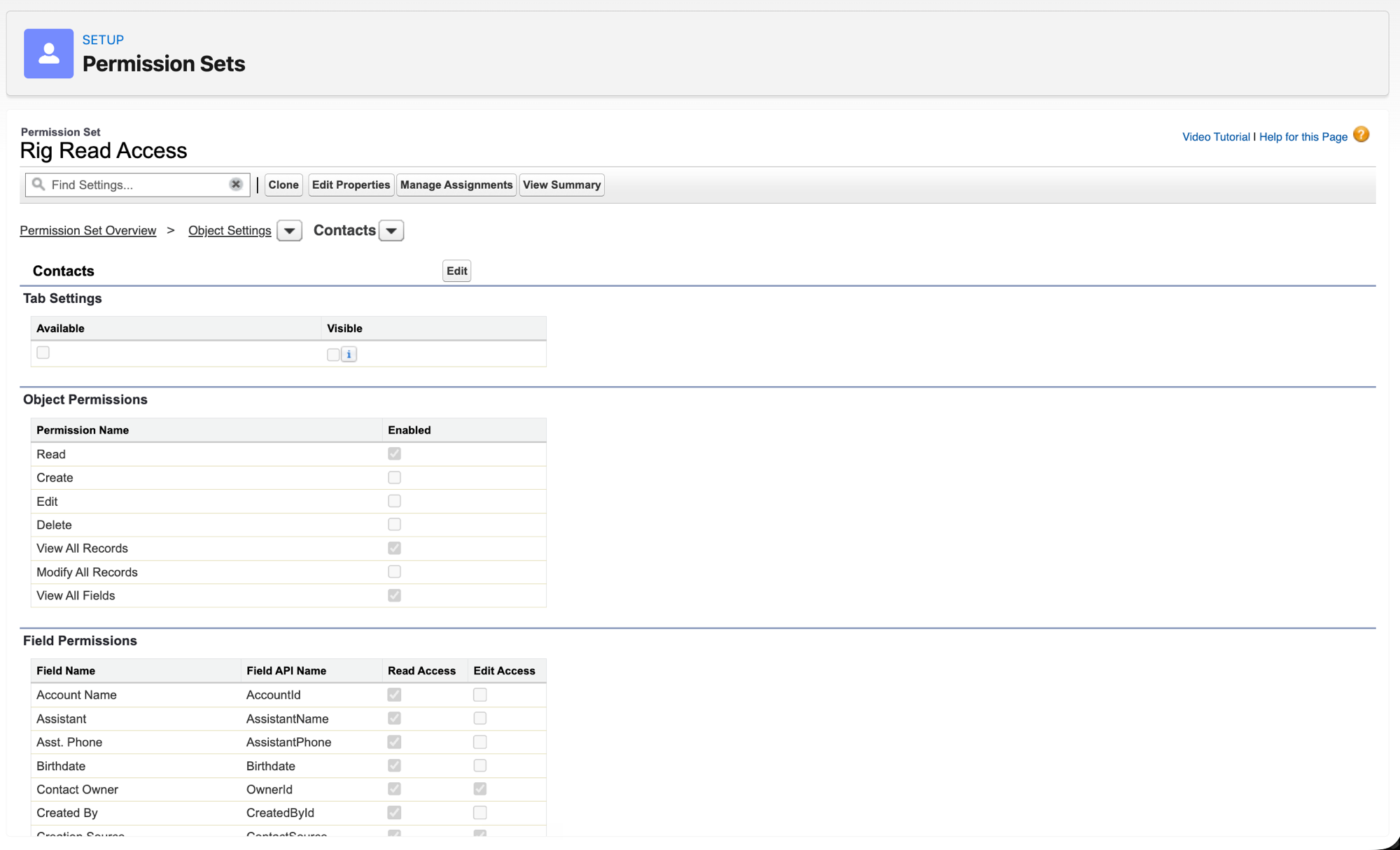

   Object Settings for one object: Read + View All Records, with field-level Read Access below.

4. While you're in each object's settings, make sure the fields you care about have Read Access — field-level security can hide individual columns even when the object is granted. A missing field fails the whole query with INVALID_FIELD and shows in Rig as "Field not accessible to the integration user" (on the User object, ProfileId is a common culprit).
5. Optional — to sync your org's Apex and custom logic. Object permissions do not cover any of it: the customisation streams read through Salesforce's Tooling API, which is gated by system permissions instead. In the same permission set open System Permissions → Edit and tick:
   • View Setup and Configuration — required for every customisation stream: the Apex, trigger and Visualforce catalogue, validation rules, custom fields, entity definitions, the flow catalogue and the dependency graph. Without it the Tooling API refuses the query outright.
   • View All Data or Author Apex — required in addition, and only to read the source bodies of Apex classes, triggers and Visualforce pages. With just View Setup and Configuration you get the catalogue — names, objects, trigger events, active flags — but the code itself comes back empty.
   Granting neither is a perfectly good answer: the CRM sync runs exactly as normal and Rig logs the customisation streams it couldn't read, rather than failing the sync. See the callout below before you decide.
6. Go to Manage Assignments → Add Assignment, tick your Run As integration user, keep No expiration date, and click Assign. The permission set does nothing until this step.

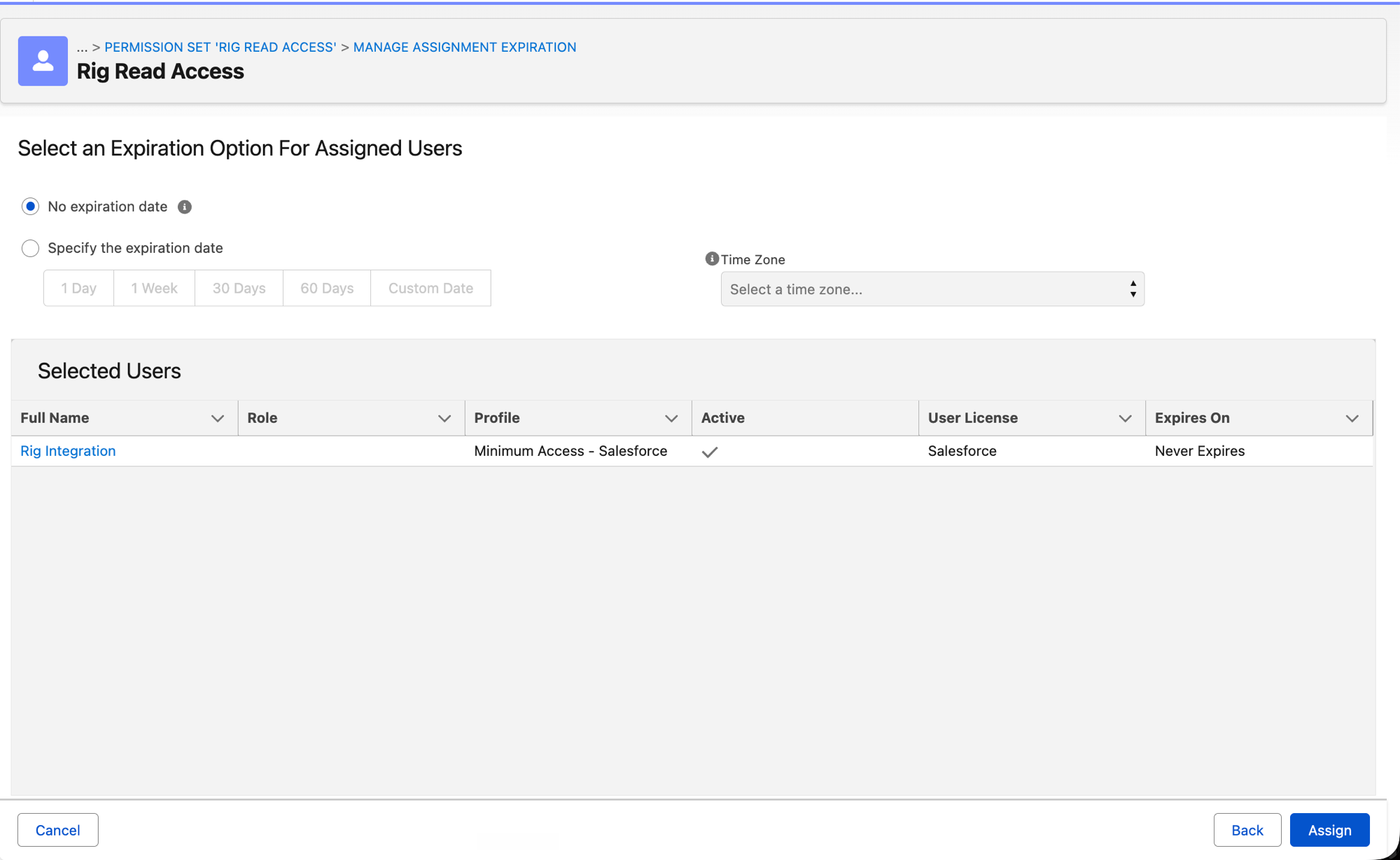

   Assign the permission set to the Run As user — with no expiration date.

Permission changes take effect on the next token, so you can re-run Test in Rig immediately — no need to touch the app or rotate credentials.

Step 3: Find your instance URL

In Setup, open My Domain and copy your My Domain URL, for example https://acme.my.salesforce.com. Sandboxes look like https://acme--sandbox.sandbox.my.salesforce.com.

Step 4: Connect it in Rig

1. In Rig, open Connections in the left sidebar and go to Sources & actions.
2. Search for Salesforce (it's under CRM, marked OAuth) and click its card.
3. Instance URL: paste your My Domain URL.
4. Connected App Consumer Key: paste the Consumer Key.
5. Connected App Consumer Secret: paste the Consumer Secret.
6. Click Continue, then Test to pull a small sample, then Sync to run the full pipeline.

What Rig pulls in

Salesforce lands in its own salesforce schema. There is no fixed object list and no field mapping to maintain: Rig asks your org what it contains at sync time, keeps the business objects — every custom object, plus the standard objects Salesforce treats as data rather than plumbing — and syncs all of their fields, standard and custom. Add a field or a custom object later and it appears on the next sync.

• Accounts, contacts, leads, opportunities, cases and users keep their familiar table names (salesforce.accounts and friends) — they just carry every column now, not a hand-picked dozen.
• Opportunity history (salesforce.opportunity_history): the stage, amount and forecast-category snapshot each time a deal moves — what time-in-stage, pipeline movement and stage-to-stage conversion questions need. This is the one ...History object Rig keeps, and it is a deliberate exception to the rule below.
• Custom objects: every __c object your org defines, with its full field set.
• Currency types: ISO code and conversion rate, so multi-currency amounts add up the way Salesforce adds them up.

Skipped: objects the Run As user can't read, the system shadow tables (...Share, ...Feed, change events, custom metadata and external objects), the per-field audit tables — AccountHistory, OpportunityFieldHistory and every other ...History / ...FieldHistory table that records one row per field edited, with OpportunityHistory above as the sole exception — and anything that looks like a credential store — objects and fields whose API name ends in token, secret, password, api key or credential never reach the warehouse. The first sync backfills your history in resumable batches; after that, syncs pull only records whose SystemModstamp moved.

Your org's customisation, too

The objects above say what is in your CRM. None of them say how your org behaves — which Apex fires on save, which validation rule rejects a write, which formula really produces the number on a report, what breaks if a field is retired. Rig reads that from Salesforce's Tooling API on the same connection, into the same salesforce schema:

• apex_classes, apex_triggers, apex_pages — with their source bodies, plus which object each trigger sits on and which events it handles.
• validation_rules — the rule, the object it guards, its error message, whether it's active.
• custom_fields and entity_definitions — the field and object catalogue behind your schema.
• flow_definitions — a catalogue of your flows: name, type, trigger, whether it's active. The logic inside a flow is not synced.
• component_dependencies — Salesforce's own dependency graph, every "X references Y" edge, so you can trace what a change would touch.

The Apex, Visualforce and custom-field streams are filtered to NamespacePrefix = null — your own customisation, not a managed package's internals. The catalogues (entity_definitions, component_dependencies) aren't filtered, because your own rules resolve through them.

These streams need permissions beyond object access — View Setup and Configuration, plus View All Data or Author Apex for Apex source bodies. See the callout in Step 2 before you grant them.

Good to know

• Rig reads only what the Run As user can see. Give that user least-privilege, read-only access to the objects you want to sync.
• Anyone with the Consumer Key and Secret can mint access tokens. Rotate the secret periodically, and immediately if it leaks.
• Make sure you copy the production My Domain URL (or the matching sandbox URL) for the org whose data you want.
• You can disconnect Salesforce at any time from Connections → Sources & actions.
